Size:65-80mm
Capacity:80-250t/h
Material:
Application: River pebble, limestone, granite, basalt, diabase, andesite, ore tailings, artificial sand making of stone chips, etc.
CFTC high-performance impact crusher and vehicle-mounted feeder and high-strength vibrating screen are short in length, light in weight, strong in adaptability, and flexible in reducing material transportation costs – regardless of coarse crushing, fine crushing or sand making operations. Can bring unexpected results to customers..

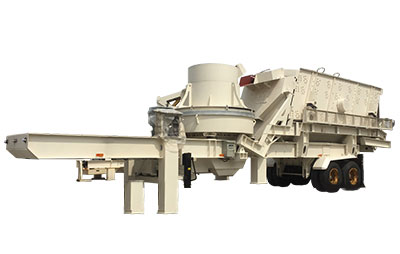

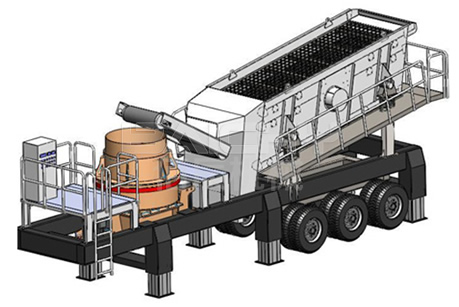

Tire mobile vertical shaft impact crushing station product features and working principle:
working principle:
The material is pre-selected by the feeder, sand production is carried out by the impact crusher, and the closed circuit system is formed by the vibrating screen to realize the cyclic crushing of the material, which can effectively reduce the sand processing process, and the finished material is output by the conveyor for continuous crushing. operation.
| Tire mobile vertical shaft impact crushing station | VSI-5000 | VSI-5000 | VSI-6000 | VSI-7000 | ||||
| LENGHT(mm) | 98000 | 11280 | 10180 | 11180 | ||||
| WIDTH(mm) | 2460 | 2780 | 2780 | 2780 | ||||
| HEIGHT(mm) | 4200 | 2500 | 4200 | 4316 | ||||
| WEIGHT(kg) | 21600 | 32000 | 24600 | 33650 | ||||
| Vertical impact crusher | ||||||||
| TYPE | VI-5000 | VI-5000 | VI-6000 | VI-7000 | ||||
| INPUT(mm) | 65(80) | 65(80) | 80(100) | 80(100) | ||||
| Vibrating screen | ||||||||
| TYPE | 2/3YK1545 | |||||||
| CONVEYOR BELT | ||||||||
| TYPE | B650x6.5 | B800x7 | B1000x7.2 | |||||
