Size:400-1520mm
Capacity:50-250t/h
Material:
Application: Limestone, granite, basalt, diabase, andesite, ore tailings, construction waste, etc.

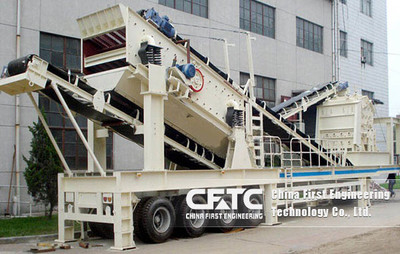

Mobile impact crusher station improves the working safety, reduces the need for quarry road maintenance, and gives better access to material resources. A further benefit is that waste material can be separated on-site..
The material is evenly conveyed into the crusher through the feeder, and after the crusher is initially crushed, the closed circuit system is formed by the circular vibrating screen to realize the cyclic crushing of the material, and the finished material is output by the conveyor for continuous crushing operation. The counter-moving mobile crusher can remove the circular vibrating screen according to the actual production needs, and realize the direct crushing of the material directly. It is convenient and flexible to operate with other crushing equipment..
| Model | M-PF1210 | M-PF1214 | M-PF1315 | M-PF1110 | M-PF1315 |
| Transportation Length（mm） | 12000 | 12000 | 13900 | 15450 | 15450 |
| Transportation Width（mm） | 2550 | 2550 | 2900 | 2950 | 2950 |
| Transportation Height（mm） | 3900 | 3900 | 4450 | 4500 | 4500 |
| Maximum Length（mm） | 12500 | 12500 | 13900 | 15450 | 15450 |
| Maximum Width（mm） | 3250 | 3260 | 3250 | 3250 | 3250 |
| Maximum Height（mm） | 5100 | 5200 | 5200 | 5200 | 5200 |
| Weight（t） | 39 | 44 | 54 | 62 | 62 |
| Crusher Model | PF-1210 | PF-1214 | PF-1315 | HD1110 | HD1315 |
| The Maximum Feeding Size（mm） | 350 | 350 | 500 | 400 | 700 |
| Production Capacity（t/h） | 70-130 | 100-180 | 130-250 | 112 | 280 |
| Vibrating Feeder | ZSW950×3800 | ZSW950×3800 | ZSW110×4900 | ZSW130×4900 | ZSW130×4900 |
| Main Belt Conveyor | B800×8.5M | B800×8.5M | B1000×9.5M | B800×11M | B1200×11M |
| Side-opening Belt conveyor(Optional) | B500×3.2M | B500×3.2M | B650×4M | B650×4M | B650×4M |
| Genset(Optional) （kw） | 320 | 320 | 400 | 320 | 440 |
| Iron Separator (Optional)（kw） | RCYD(C)-8 | RCYD(C)-8 | RCYD(C)-10 | RCYD(C)-8 | RCYD(C)-12 |
