Aggregate crushing plant

Size:

Capacity:

Material:

Application:

Introduction

Introduction
working principle
Parameters
Consulting offer

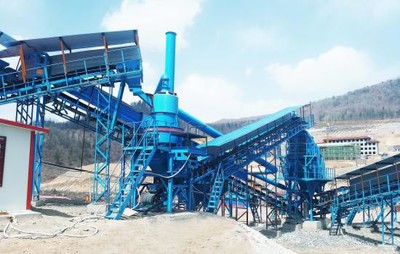

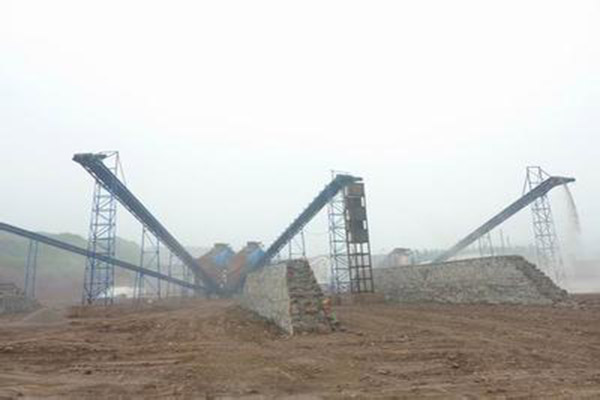

Aggregate crushing plant Introduction

The aggregate crushing plant is used to produce stone for construction machinery, construction sand, etc. The construction of the sand and gravel production line needs to be accurately calculated to ensure that the production links of the production line can coordinate work..

Aggregate crushing plant working principle

The project uses two sections and one closed circuit process. They are: a section begins with a PE jaw crusher, PE-750×1050 for coarse breaking, the feeder feed port uses a vibrating screen to connect the feeder to meet the feed particle size standard, and the second section uses stone crushing equipment. The closed circuit section uses two circular vibrating screens to complete the circuit. The finished yarn of the discharged material can have a particle size of 0-5 mm, and a suitable particle size can be selected between 15-25 mm..

Technical Parameters

Installation and maintenance of aggregate crushing plant
Installation test:
1. The stone production line equipment should be installed on a horizontal concrete foundation and fixed with anchor bolts.
2. When installing, pay attention to the vertical direction of the main body and the horizontal.
3. After installation, check whether the bolts in all parts are loose and the main door is tight. If so, tighten it.
4. Configure the power cord and control switch according to the power of the stone production line equipment.
5. After the inspection is completed, the empty load test is carried out, and the test can be carried out normally.

Maintenance points:
1. The shaft bears the full load of the negative machine, so good lubrication has a great relationship with the bearing life. It directly affects the service life and operation rate of the machine. Therefore, the injected lubricating oil is required to be clean and sealed well.
2. Pay attention to whether the work of each part of the machine in the stone production line is normal.
3, pay attention to check the wear level of the wear parts, pay attention to replace the worn parts,
4, the bearing oil temperature rises, should stop immediately to check the reasons to eliminate,
5. If there is impact sound when the rotating gear is running, it should be stopped and checked immediately and eliminated.
