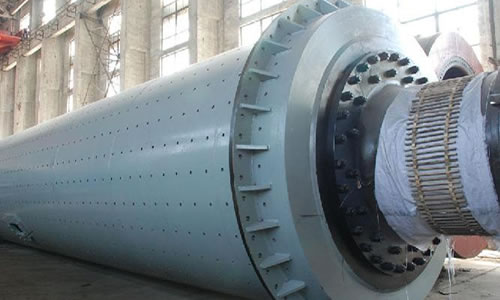

Cement ball mill

Size:custom made

Capacity:6.5-62/tph

Material:

Application: Cement raw meal, cement clinker, slag and cinder grinding

Introduction

Introduction
working principle
Parameters
Consulting offer

Cement ball mill Introduction

Cement ball mill is mainly used in the grinding of finished products and raw materials in cement plants. It is also suitable for industrial and mining enterprises such as metallurgy, chemical industry and electric power to grind various ores and other grindable materials. It can be used for open-flow grinding, and it is also suitable for circulating circulation grinding with a classifier..

Cement ball mill working principle

The cement ball mill is composed of a horizontal simplified body, a hollow shaft for feeding and discharging, and a grinding head. The simplified cylinder is a long cylinder. The cylinder is equipped with an abrasive body. The cylinder is made of steel plate. The steel liner is fixed with a simple body. The grinding body is generally Steel balls are loaded into the cylinder according to different diameters and proportions. The grinding body can also be used in steel sections. When the cylinder rotates, the material and the grinding ball are close to the lining plate under the action of centrifugal force. Due to the frictional force, the cylinder brings the material and the grinding ball to a certain height. Under the action of gravity, the grinding ball and the material are simultaneously When falling, the grinding ball crushes the material, and at the same time, the material slides and rubs against the lining, and the material is ground to achieve the purpose of grinding the material..

Technical Parameters

specifications (m)	Reducer		power (kw)	capacity (t/h)	weight (t)
specifications (m)	type	Speed ratio	power (kw)	capacity (t/h)	weight (t)
φ1.83×7	ZD60	4.5	245	6.5-8	36
φ2.2×7.5	ZD70	5	380	8-10	56
φ2.2×11	D110	35.5	630	12-13	104.6
φ2.2×13	D110	35.5	630	16-18	114
φ2.4×13	D110	35.5	800	20-23	171.5
φ2.6×13	MFY100	19.5	1000	28-32	149.7
φ3×9	D125	41.2	1000	28-36.5	136.4
φ3×11	D140	42.8	1250	36-47	180
φ3.2×13	D140	36.5	1600	45-50	198
φ3.8×13	MFY250	16.5	2500	60-62	204
